Q12-76-T38-RC Threaded Button Bit
Code No.:Q12-76-T38-RC
Diameter: 76mm
Length: 155mm
Gauge Buttons: 12mm*8
Front Buttons: 12mm*4
Skirt Design: Retrac
Carbide Design: Dome
Face Design: Flat
Water Holes: 2 on front
Weight: 3.50kg
Rock drilling tools factory ProDrill manufactures rock drill bits: T38 Threaded Button Bits is the most important size for benching and long-hole drilling underground.
We will choose to use tungsten carbide of T6，featuring good wear-resistance and toughness.
This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.
Meanwhile，we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes.
In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide if high speed is not a necessity.
Diameter 64mm 76mm, 89mm,
Skirt body: retrac, and normal,
Face type: flat, uniface, drop center
Carbide shape: Dome, ballistic, semi-ballistic
Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

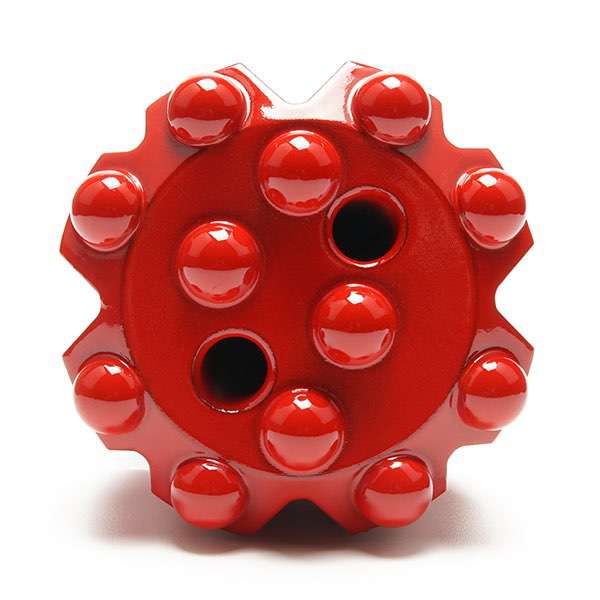

12 Dome carbide inserts T38 threaded drill bits with flat face design, 76mm diameter and retrac skirt body for bench drilling and underground long hole drilling.

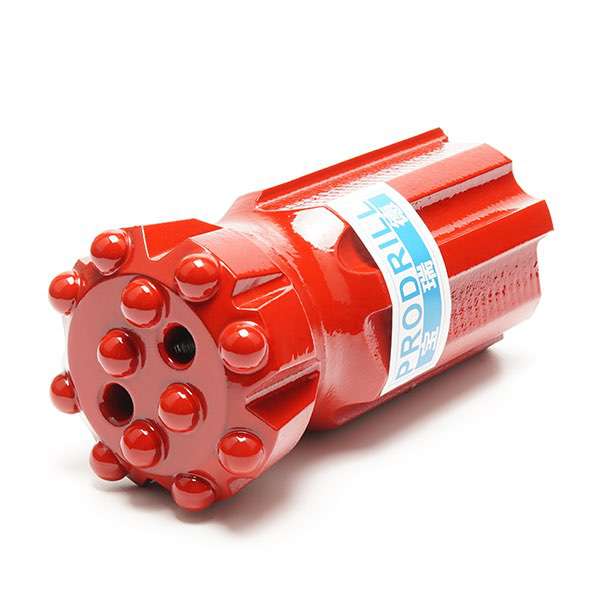

Flat-face design detail of T38-64 threaded button bit with dome buttons, retrac skirt, to match with extension drill steels.
