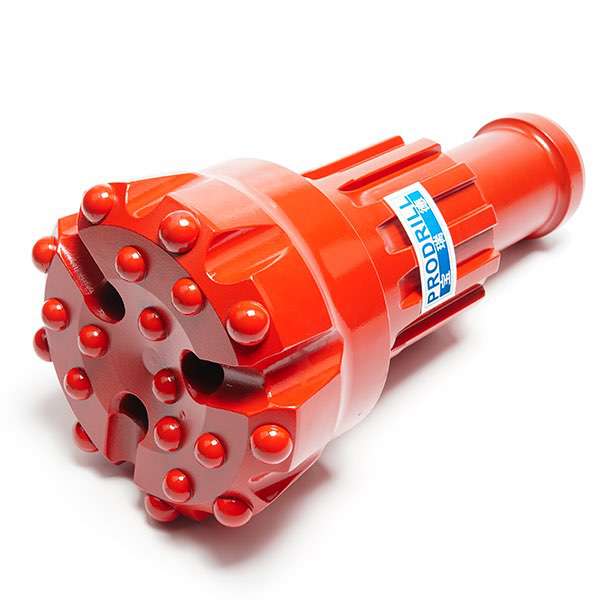

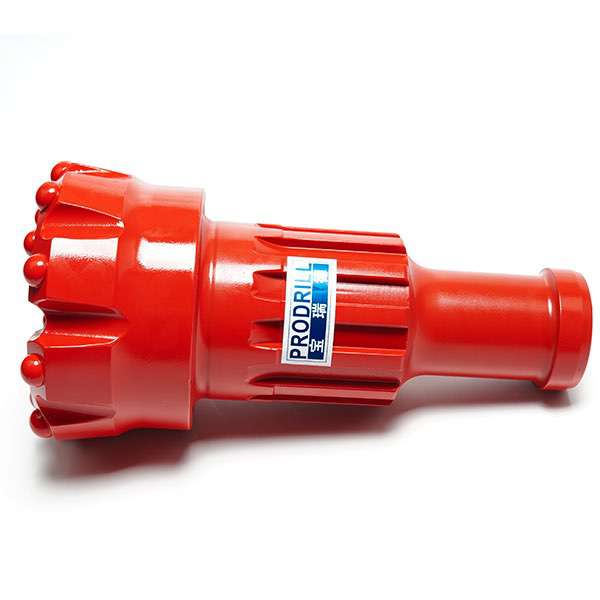

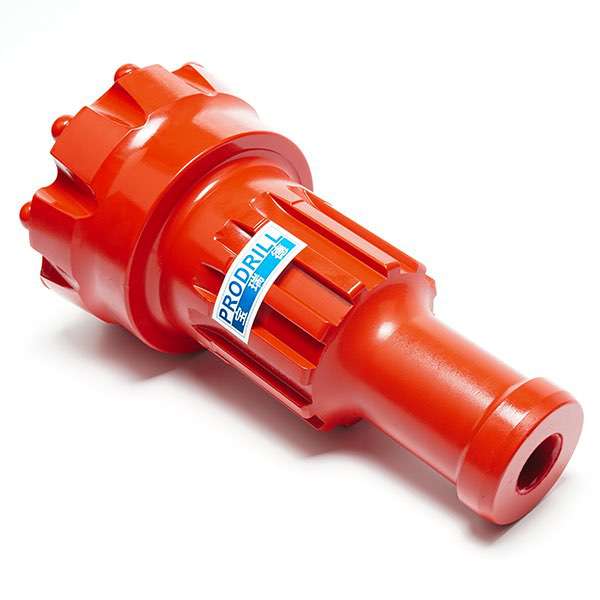

Down The Hole bit Mission60/65-165mm
Advantage :concave bit orientation, good hole straightness, three drainage holes, smooth exhaust and fast slag discharge
Code No.: M60-165
Diameter: 165mm
Air Holes No.: 3
Gauge Buttons: 9*18mm
Face Buttons: 6*16mm
Concave Buttons : 3*16mm
Face Design: Concave
Carbide Design: Dome
Weight: 27.0KGS
Rock drilling tools manufacturer ProDrill offers a comprehensive range of DTH drill bits,DTH hammer bits,DTH button bits ,DTH carbide bits with M shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.
Shank types: M 30, M 40, M 50, M 60/65, M 380.
DTH rock drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-305mm)

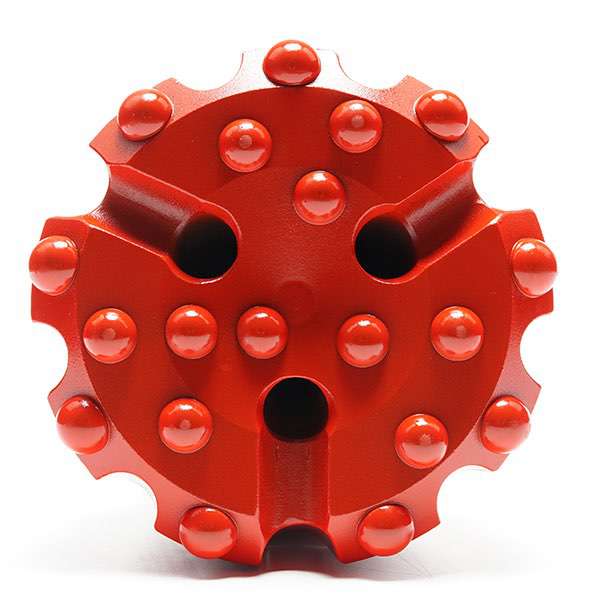

Concave Face
The all around application bit face specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.
M shank DTH drill bit with flat face, 19 dome carbide buttons for blasting bore holes, water well drilling.
