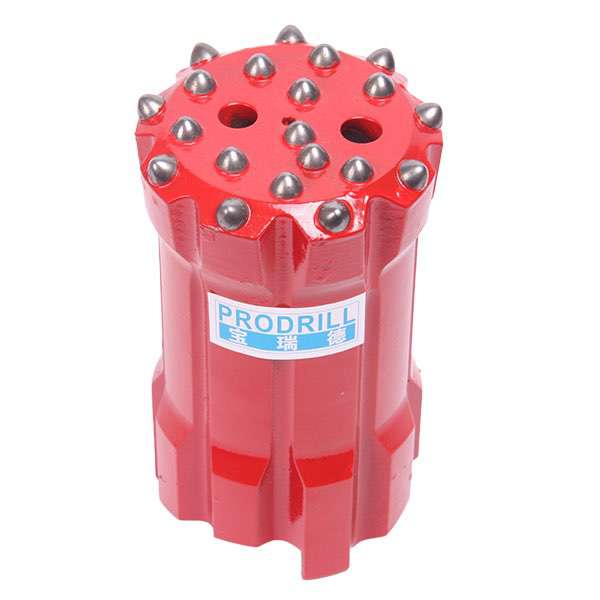

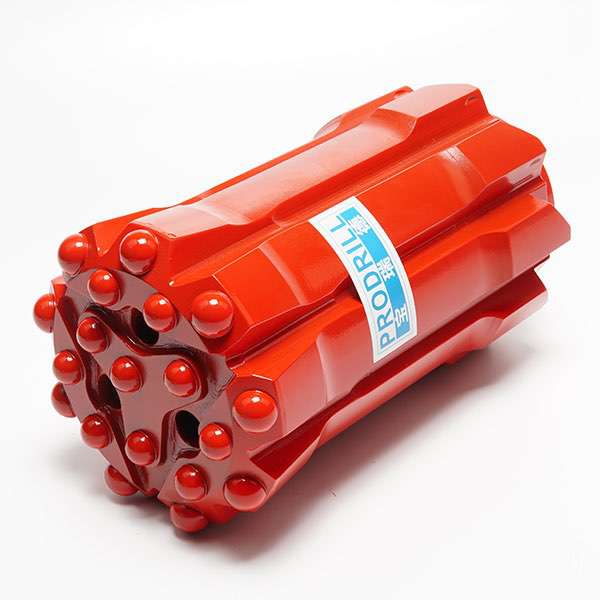

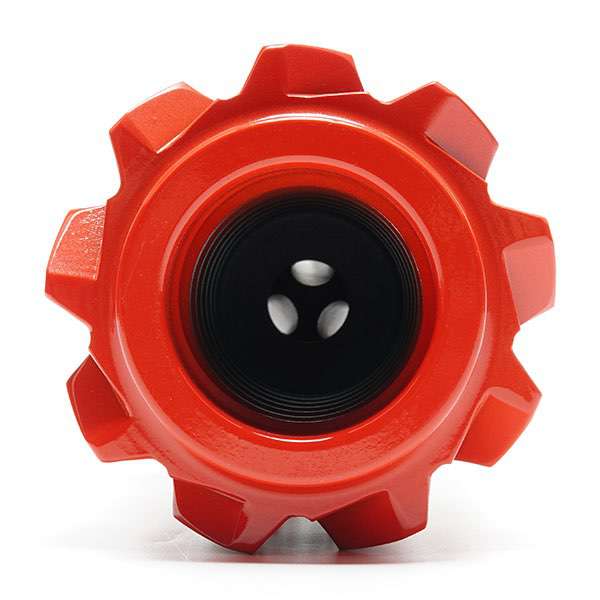

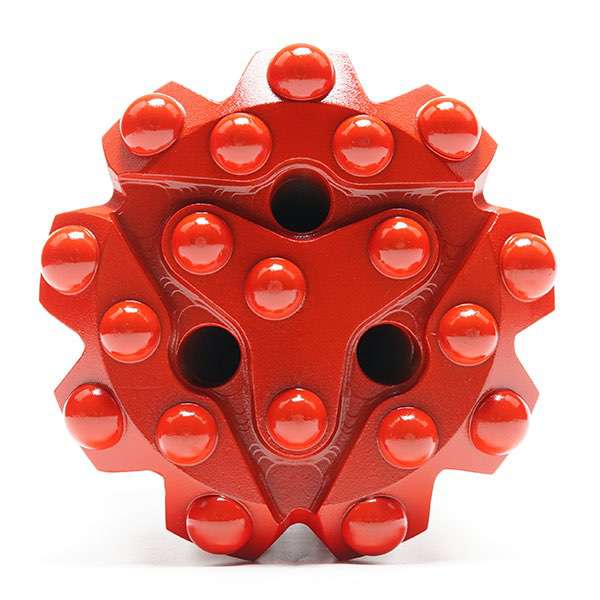

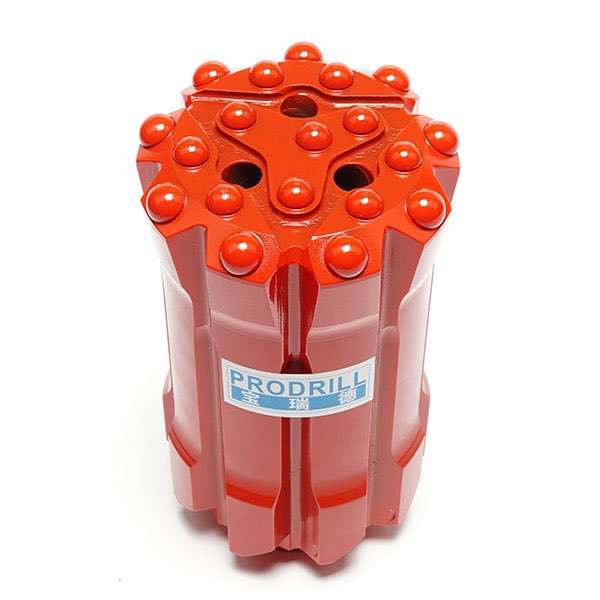

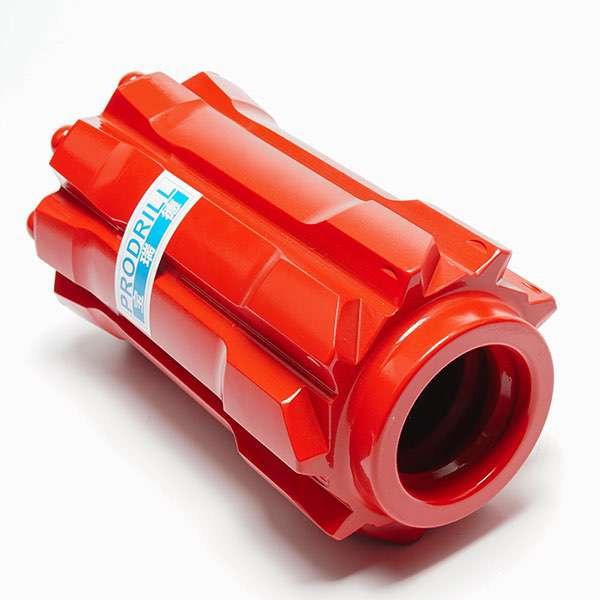

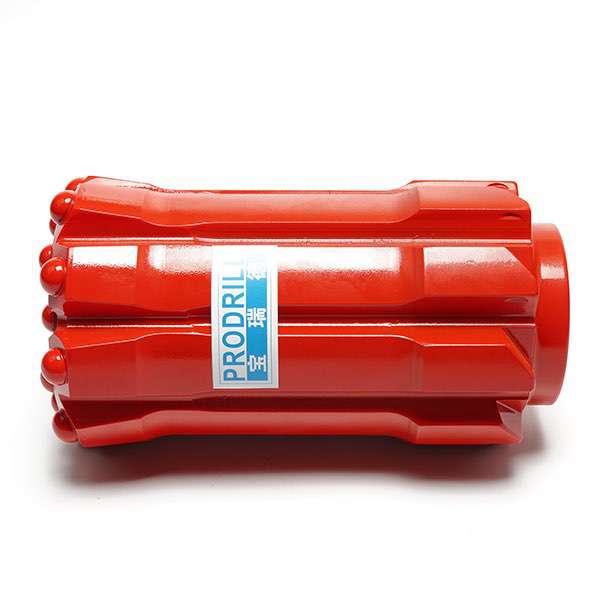

Q19-140-GT60-RC-Threaded Button Bit
Code No.: Q19-140-GT60-RC
Thread: GT60
Diameter:140mm
Gauge Buttons: 9*14mm
Front Buttons: 10*14mm
Skirt Design: Retrac
Carbide Design: Dome
Face Design: Uniface
Rock drilling tools manufacturer ProDrill offers rock drill bits: GT60 Threaded Button Bits are one of the most important size for benching. GT60 rock drill bits are used in Sandvik Pantera DP1500i heavy duty top hammer focusing big and long hole drilling for bench and surface mining.
Diameter: 93mm, 102mm, 115mm, 127mm,140mm
Skirt Body: retrac, and normal, straightrac
Face type: flat, uniface, drop center
Carbide Design: Dome, ballistic, semi-ballistic/parabolic
ProDrill offer a wide string of GT60 drilling bit , rod , shank etc for Pantera series Sandvik DP1500 i top hammer .
| Pantera Consumables for Sandvik DP1500i | |
| ROD | DS-ROD M/F 4.3 MTR RG60-60R- 4 |
| 140mm Bit | DS - RETRAC BIT- GT60- 140MM- |
| 127mm Bit - S48 (Pref) | DS - GT60 127MM RETRAC BIT- |
| 127mm Bit - S55 | 127MM BIT - S55 |
| 115mm Bit - S48 (Pref) | DS-BIT RETRAC 115MM RG60- BUTT |
| 115mm Bit - S55 | DS - BIT - GT60 X 115MM RETRAC |
| 102mm Bit - S48 (Pref) | RETRAC BIT GT60 102MM |
| 102mm Bit - S55 | BIT - 102MM - S55 |
| BIT STANDARD SUB | |
| SHANK | DS-ADAPTER; SHANK; GT60 X HL1560 |
