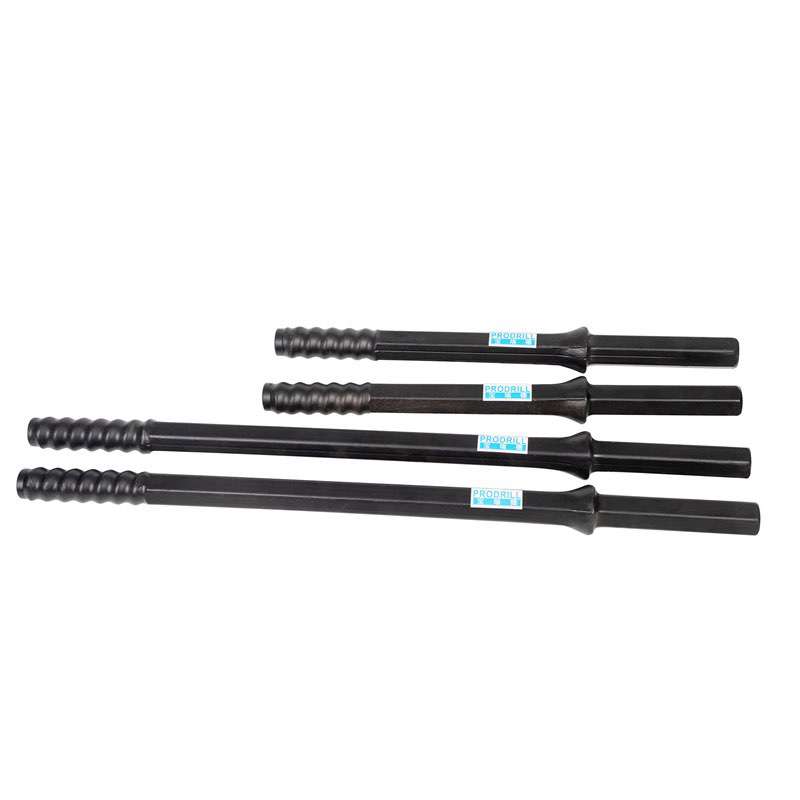

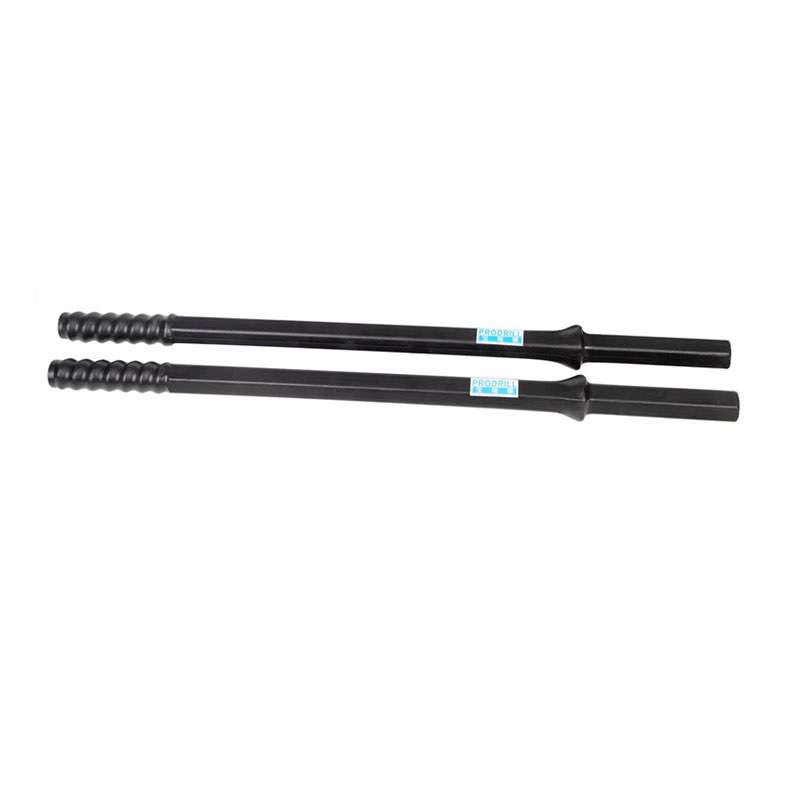

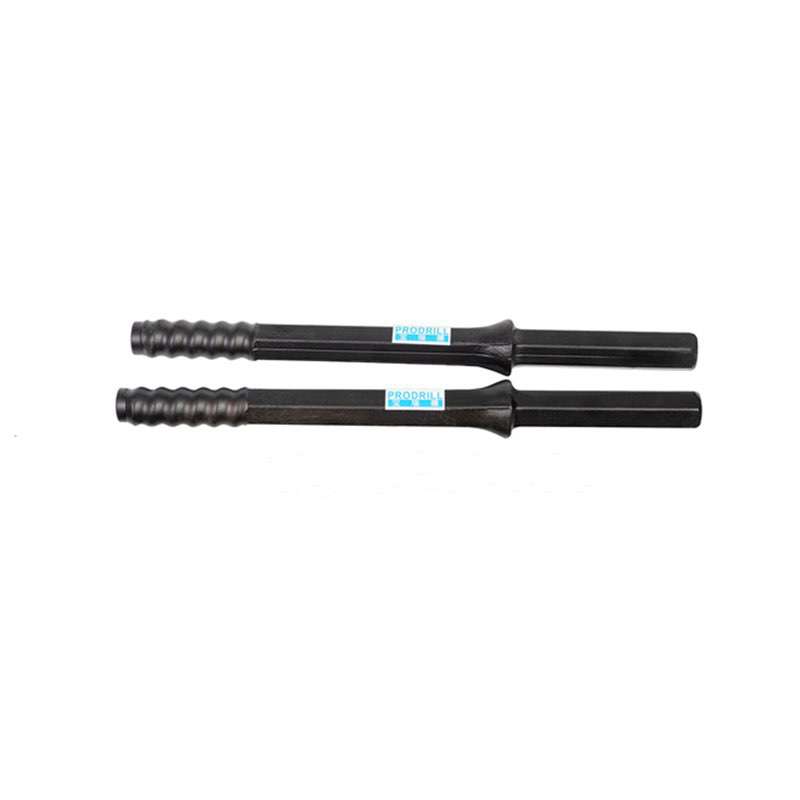

Shank adapter/Shank rod H22-R25

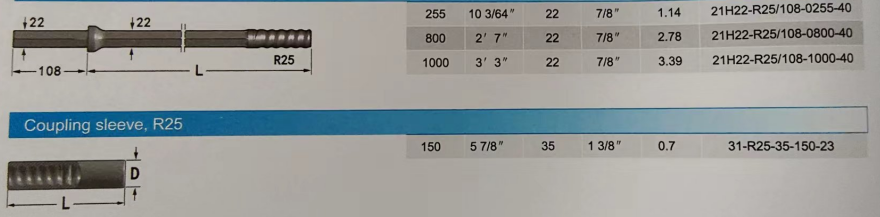

Shank size: 22*108
Length: 800/1000mm
Thread: R25
Rock drilling tools: Shank Rod manufactured by rock drill bits factory ProDrill.
Shank size is 22 x 108mm, and shank end drill rod end connect bit with thread way. Normally R22,R25,R32 for small hole. We manufacture shank end rods in the following threads: R22, R23, R25, R28, R32 mainly focus the stone quarrying such as granite, marble, limestone, sand stone quarries drilling, diameter of hole range from 38mm-50mm at most.

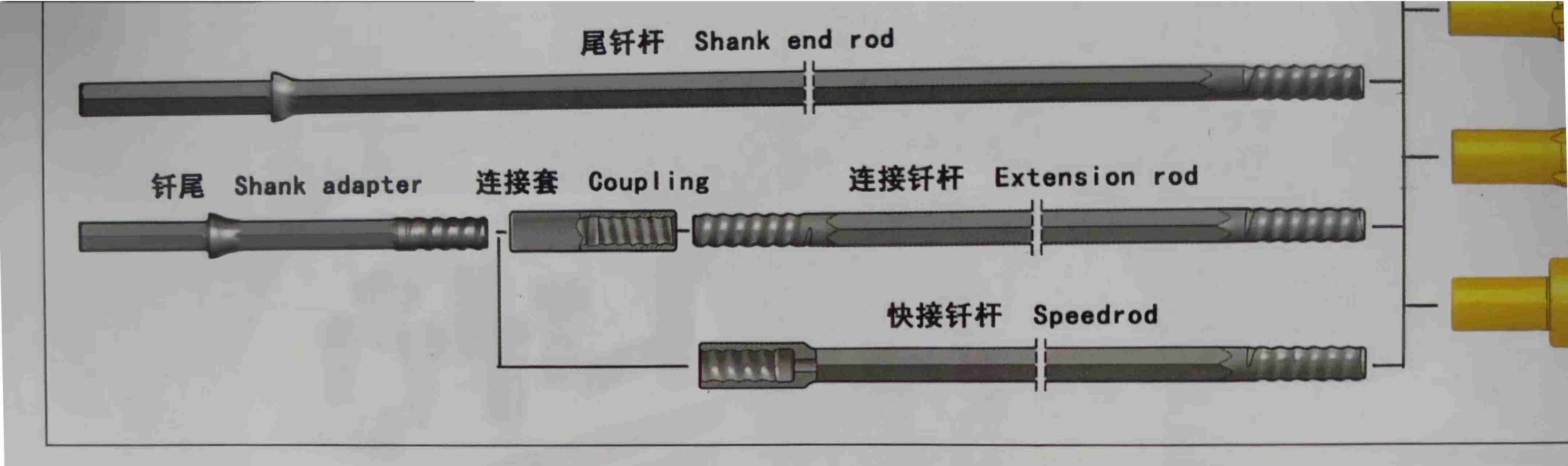

ProDrill shank rods, to match extension drill rods and drifting drill steels.
PDFFor more details please watch PDF online: Shank Rod for Small Hole Drilling Catalogue Shank rod All the models
