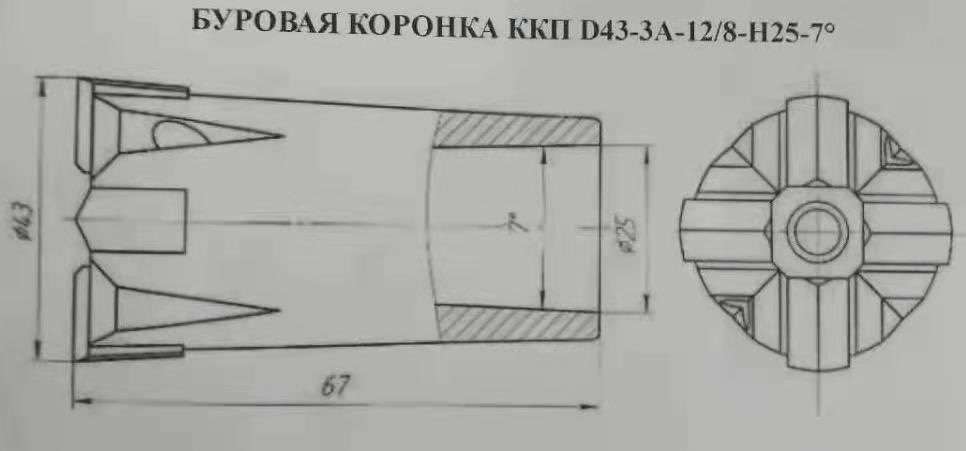

D43-12/8-67/78-H25-7° Tapered Cross Bits for gold salt mining of Russian Area

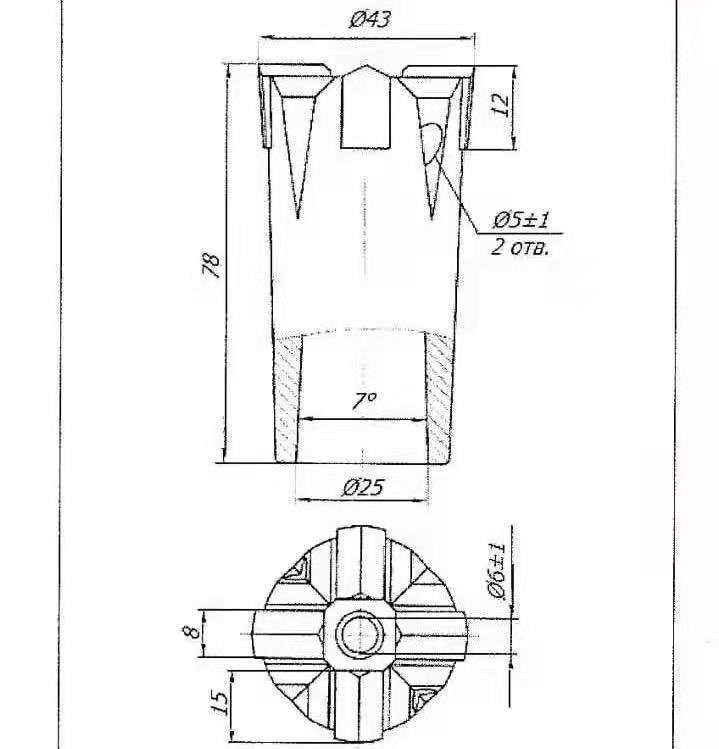

Diameter:43mm
Taper degree：7°
Hexagonal type : 25*108 mm
Height: 67/78 mm ( incuding carbide insert )
Chisel carbide insert size
Tapered cross bits from rock drill bits factory ProDrill, suitable for mining of black metal mines(such as iron mine, manganese etc), nonferrous metal mine(such as gold, silver, copper etc), marble and granite etc. Its drilling depth usually is 15m-18m in case of hardness grade F8-14.
It is widely used in drilling holes with a depth size less than 5 meters and diameter scope in 20-45 mm by light-duty hand hold drills, like Y6, Y10, Y24, major use in natural dimensional stone quarry for small hole drilling, block's trimming and 2nd splitting for small blocks. To match Hexagonal 25 mm and Hexagonal 12 mm's tapered drill rod with 4/6/7/11/12 degree.
All tapered cross bits are made with high quality of raw material through special heat treatment, The deliver capacity are very strong and can completely meet customer’s requirements on delivery design.
